PWNagotchi Volume 3 — The Display Ecosystem

Waveshare 2.13" v1-v4, Pimoroni Inky pHAT, IT8951 large panels, and the color e-paper options that Fancygotchi unlocks

The Pwnagotchi displays a face, a name, a battery indicator, a list of nearby APs, and a small status log. None of that needs 60 fps. E-ink (technically electrophoretic display / EPD) is the right substrate for the use case for four reasons:

  1. Zero power between refreshes. The display retains its image with the power off. A Pwnagotchi can show “sleeping” forever on a dead battery.
  2. Outdoor-readable. Reflective, not emissive. Sunlight makes it more legible, not less. Useful for a device that often rides on a backpack.
  3. The aesthetic. The slow partial-refresh + the slight ghosting + the limited palette is visually distinctive. A LiPo-OLED Pwnagotchi looks like every other handheld; an e-ink Pwnagotchi looks like a Pwnagotchi.
  4. Driver simplicity. The Pwnagotchi UI redraws maybe once a minute (more if a handshake fires; less in sleep). The SPI-bus communication with the e-ink controller is straightforward — no DMA, no complex framebuffer pipeline.

The cost is refresh rate (full-frame redraw is 0.5-4 sec depending on panel) and panel fragility (the glass is thin; edges are vulnerable to torque).

Figure 1 — The Waveshare 2.13" e-Paper HAT — the 250×122 black-and-white panel that is the default Pwnagotchi display — shown with its SPI driver board on top and the bare panel below. This is the exact part …
Figure 1 — The Waveshare 2.13" e-Paper HAT — the 250×122 black-and-white panel that is the default Pwnagotchi display — shown with its SPI driver board on top and the bare panel below. This is the exact part family whose V1–V4 revision traps the rest of this volume untangles.

Figure 1.0 — Waveshare 2.13” e-Paper HAT, panel and driver board. Photo: Spotpear / Waveshare product listing (https://spotpear.com/shop/Raspberry-Pi-Jetson-Nano-Sunrise-X3-Pi-Pwnagotchi-2.13inch-e-Paper-HAT-E-Ink/2.13inch-e-Paper-HAT-plus.html).

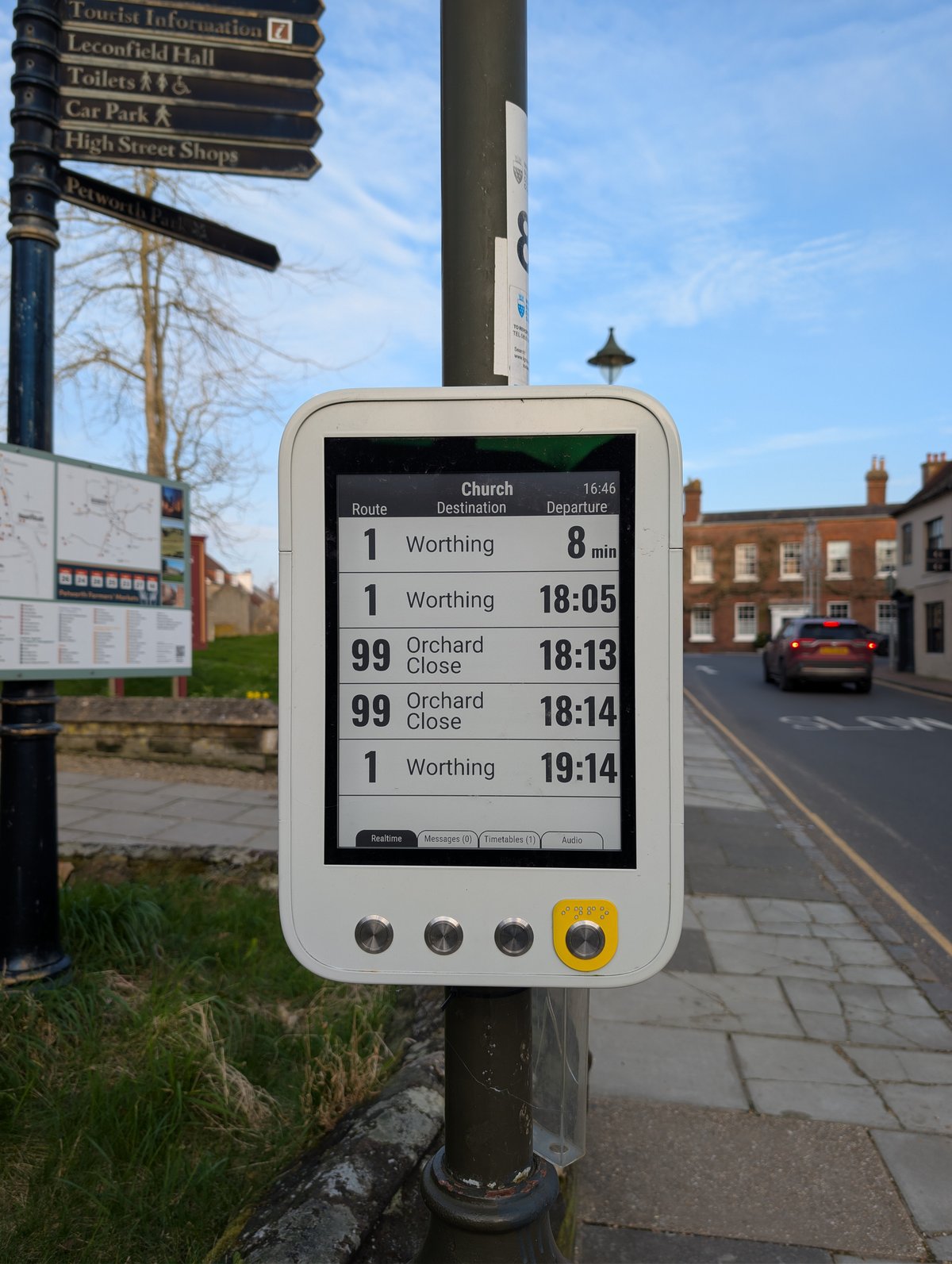

Figure 2 — A modern e-paper display in service — the same family of physics the Pwnagotchi's HAT uses: an electrophoretic layer suspended in micro-capsules, polarized by an applied field, retaining its state …
Figure 2 — A modern e-paper display in service — the same family of physics the Pwnagotchi's HAT uses: an electrophoretic layer suspended in micro-capsules, polarized by an applied field, retaining its state when the field is removed.

Figure 1.1 — File:E-paper display at bus stop (Church, Petworth) 2026-03-03.jpg by Andy Li. License: CC0. Via Wikimedia Commons.

3.1 The Pwnagotchi UI footprint

The mainline Pwnagotchi face is 128×250 pixels (the native resolution of the most common Waveshare 2.13” panel) at 1-bit (black-and-white) color depth. The layout:

   ┌──────────────────────────────────────────────────────┐
   │ <name>            ¡         ?    100%   3.4V         │  ← status row
   │ ─────────────────────────────────────────────────── │
   │                                                      │
   │         (◕    ◕)                                    │  ← the face (the "gotchi")
   │            ω                                         │     evilsocket's pixel-art set
   │                                                      │
   │ APs:    12     STAs:    3     SHK:    7 ▲          │  ← scan counters
   │ MODE:   AUTO   CH:    6,11    UPT:   2h 14m         │  ← mode + active channel + uptime
   │ ──────────────────────────────────────────────────  │
   │ > saw new AP MyCoolNetwork                          │  ← scrolling event log
   │ > captured handshake aa:bb:cc:dd:ee:ff              │
   │ > pwngrid: spotted JimsGotchi (peer +2 since 12:00) │
   └──────────────────────────────────────────────────────┘

The face is the visually-dominant element. The pixel-art set in mainline Pwnagotchi includes ~20 expressions (happy, sad, sleeping, angry, lonely, excited, broken, etc.) keyed to internal state machine transitions. Fancygotchi (Vol 7) replaces this fixed set with an arbitrary user-supplied set of PNG sprites.

3.2 Waveshare 2.13” e-paper HAT — the canonical display

The Waveshare 2.13” black-and-white e-paper HAT is the de facto Pwnagotchi display. It comes in four hardware revisions that look identical from the front and use four different drivers. This is the #1 frustration of first-time Pwnagotchi builders.

Table 1 — 3. Waveshare 2.13" e-paper HAT — the canonical display

RevisionResolutionControllerRefresh timeui.display.type valueDiscriminator
v1122×250 (1bpp)UC8151~2.5 s fullwaveshare_1”Rev 2.0” or “Rev 2.1” silkscreen — older PCB. White back.
v2122×250 (1bpp)IL3895~2 s fullwaveshare_2”Rev 2.2” silkscreen. White or black back.
v3122×250 (1bpp)SSD1675B~2 s full, ~0.3 s partialwaveshare_3”Rev 2.3” silkscreen. Partial refresh works.
v4122×250 (1bpp)SSD1680~2 s full, ~0.3 s partialwaveshare_4”Rev 2.4” silkscreen. Current production. Buy this.

The differences matter:

  • v1 and v2 lack reliable partial-refresh support. Every face transition is a full-frame redraw; the screen visibly flashes black-then-white-then-content for 2-3 seconds. This wears thin fast.
  • v3 and v4 support partial refresh — face changes redraw only the changed pixels in ~300 ms with no flashing. v4 is the current production part. The clear correct choice is v4.
  • The driver in jayofelony’s Pwnagotchi distribution must match the panel revision. If you flash an image configured for v2 and install a v4 panel, you get a perfectly white display and a confused user. Check the silkscreen on the back of the panel — it explicitly says “Rev 2.X”.

3.2.1 Configuring the panel revision

Edit /etc/pwnagotchi/config.toml:

[ui.display]
enabled = true
type = "waveshare_4"      # or waveshare_3 / waveshare_2 / waveshare_1
color = "black"           # for the v4 b/w panel; "red" for the b/w/red v4
rotation = 0              # 0/90/180/270 — typical case-mounts want 0 or 180

Then systemctl restart pwnagotchi. Watch journalctl -u pwnagotchi -f for a confirmation that the display initialized; if the driver fails to talk to the panel you’ll see an SPI or epd traceback.

3.2.2 The Waveshare 2.13” 3-color (b/w/red) variant

Waveshare also ships a 2.13” v4 panel in a 3-color black/white/red flavor. The red is achieved with a second pigment in the e-ink capsules. From Pwnagotchi’s perspective:

  • Same physical PCB, same controller (SSD1680).
  • type = "waveshare_4" + color = "red" enables red rendering.
  • Red refresh time is ~15 seconds full-frame. Significantly slower than the 2-color variant.
  • Mainline Pwnagotchi has no idiomatic use of red — it’s mostly a Fancygotchi feature (red accents in custom themes).

The 3-color variant is a curiosity, not a recommendation. Stick with the standard 2-color v4 unless you have a specific Fancygotchi theme that uses red.

3.3 Pimoroni Inky pHAT

The Pimoroni Inky pHAT is a 212×104 (4-color) e-paper HAT in the Pi-pHAT form factor (half the size of a full HAT). Three Inky pHAT generations exist:

Table 2 — The Pimoroni Inky pHAT is a 212×104 (4-color) e-paper HAT in the Pi-pHAT form factor (half the size of a full HAT). Three Inky pHAT generations exist

GenerationResolutionColorsNotes
Original (UC8159)212×104black/white + red OR black/white + yellowDiscontinued
2018 refresh212×104black/white + red, yellow, OR red/yellow/whiteThe “tri-color” series
Inky pHAT 3.7” (later sibling)480×280b/w onlyNot a pHAT-form-factor; different mount

Pimoroni’s inky Python library was integrated into mainline Pwnagotchi via the inkyphat display driver. To use:

[ui.display]
enabled = true
type = "inkyphat"
color = "red"             # or "yellow" or "black"
rotation = 0

The Inky pHAT differentiation from Waveshare:

  • Smaller (212×104 vs 250×122) — less screen real estate, the face is tighter.
  • Multi-color out of the box.
  • Pimoroni’s library is well-maintained and ships through pip cleanly; Waveshare’s vendor library has historical packaging issues that the jayofelony fork patches around.
  • More expensive (~$25-32 vs Waveshare’s ~$22).

Use case fit: the Inky pHAT is the right pick if you want a smaller form factor, multi-color from day one, or if you’re building a Fancygotchi (Vol 7) and want the color palette for your custom theme.

3.4 The IT8951 large-panel path

For displays larger than ~4” diagonal, the SPI-direct controllers (SSD1680 etc.) run out of bandwidth. The standard workaround is the Waveshare IT8951 USB / SPI controller board — a dedicated EPD timing controller chip that drives panels up to 10” / 1872×1404 resolution.

Some hobbyist Pwnagotchi builds use a Waveshare 7.5” or 9.7” panel via an IT8951 controller. The face is enormous. The use case is desktop Pwnagotchi (sitting on a shelf as conversation piece) rather than portable.

Mainline + jayofelony Pwnagotchi do not ship an IT8951 driver out of the box. The community has authored it8951 plugins (see Vol 11 §6 for the authoring pattern); they work but are unmaintained. For a portable Pwnagotchi, this is the wrong path. For a desktop trophy, fine.

3.5 Color e-paper — Pimoroni Inky Impression family

This is where Fancygotchi earns its name. The Pimoroni Inky Impression series ships 7-color e-paper:

Table 3 — This is where Fancygotchi earns its name. The Pimoroni Inky Impression series ships 7-color e-paper

ModelResolutionDiagonalColorsNotes
Inky Impression 4”640×4004”Black, white, red, yellow, blue, green, orangeThe original 7-color hobbyist EPD.
Inky Impression 5.7”600×4485.7”same 7-colorLarger, more SoM presence.
Inky Impression 7.3”800×4807.3”same 7-colorThe big sibling — Pi-3-class power posture.

The 7-color refresh is slow — full-frame is ~25-30 seconds. There is no partial refresh. The aesthetic payoff is enormous: gorgeous, screen-printed-poster-quality output.

Mainline Pwnagotchi has no Inky Impression driver. Fancygotchi adds one. The Fancygotchi theme JSON lets you specify how the gotchi face renders into the 7-color palette (and which palette positions are which named color — there’s an indirection layer because the EPD’s color order is non-obvious).

If you want a color Pwnagotchi, the path is: install jayofelony first, install Fancygotchi on top (Vol 7 §3), select an Inky Impression theme.

3.6 The Waveshare color e-paper alternatives

Waveshare also ships color e-paper HATs that compete with Pimoroni:

Table 4 — Waveshare also ships color e-paper HATs that compete with Pimoroni

ModelResolutionColorsPwnagotchi support
Waveshare 2.13” b/w/red (v4)122×2503Mainline (via waveshare_4 + color = "red")
Waveshare 2.13” 4-color122×2504 (b/w/red/yellow)Community driver; not mainline
Waveshare 4.01” 7-color ACEP640×4007Fancygotchi (Vol 7); rough community drivers in mainline
Waveshare 5.65” 7-color ACEP600×4487Fancygotchi
Waveshare 7.5” ACEP800×4807Fancygotchi

Pimoroni vs Waveshare for color e-paper:

  • Pimoroni’s drivers and docs are better.
  • Waveshare is cheaper (~$60 vs ~$85 for similar panels) and has more form factors.
  • Mounting (hat vs flat-cable) varies — Pimoroni Inky Impression family is HAT-mount and clean; some Waveshare large-color models are bare panel + FFC cable + external controller, requiring more enclosure work.

For Fancygotchi-on-color the convenient pick is Pimoroni Inky Impression 4”. For a budget-conscious build, the Waveshare 4.01” 7-color works once you fight through driver setup.

3.7 The OLED footnote (don’t do it)

You can technically point Pwnagotchi at a small SSD1306 / SH1106 OLED display via the sh1106 or ssd1306 plugin. Don’t. OLEDs:

  • Burn in. The Pwnagotchi face is largely static; the OLED will ghost permanently after ~3-6 months.
  • Are emissive — your battery life drops noticeably (a 128×64 SSD1306 at full brightness pulls 20-30 mA continuous; that’s 10-15% off your runtime).
  • Are 128×64 — too small for the standard face layout. The face is squished.

The OLED path exists for “I had an SSD1306 in the parts bin” builds. For a fresh build, use an e-paper HAT.

3.8 Display choice — recommendation matrix

Table 5 — 9. Display choice — recommendation matrix

GoalRecommended displayWhy
Default modern PwnagotchiWaveshare 2.13” v4 b/wCheap, mainline-supported, partial refresh, matches all 3D-printed brick cases
Color showcase, desktopPimoroni Inky Impression 4” 7-colorBest color, larger, slow refresh OK on desktop
Smallest portable + colorPimoroni Inky pHAT (3-color)pHAT form factor, color, mainline driver
Motorola Advisor pager case (Vol 4 §6)Waveshare 2.13” b/wEvery documented pager-case build uses it, behind the display window with a printed bezel
Build budget < $60Waveshare 2.13” v4 b/wCheapest viable option
Build is research only (bench)Anything — they all workThe face is the same; the choice is aesthetic

3.9 Display + case interactions (preview of Vol 4)

The display choice constrains the case choice. The standard 3D-printed Pwnagotchi cases come in three families:

  1. 2.13” brick — sized for Waveshare 2.13” or Pimoroni Inky pHAT, no taller than the Pi Zero footprint.
  2. 2.13” clamshell — flips open like a small notebook; the e-ink panel is on the lid, the Pi + battery in the base.
  3. Inky Impression 4” — a much larger case (~110×80 mm), often a wall-mount or shelf-stand rather than a portable.

The documented Motorola Advisor pager-case builds all use a Waveshare 2.13” b/w panel (V2 in the real-shell Pagergotchi, V4 in the Thingiverse remix), because it is close to the size of the Advisor’s display window and is mainline-supported. The printed bezels are sized to a specific panel; another panel means re-doing the bezel.

3.10 Diagnostics — “my display is white / weird / wrong”

Table 6 — 11. Diagnostics — "my display is white / weird / wrong"

SymptomCauseFix
Solid whiteWrong driver (waveshare_2 configured but waveshare_4 panel mounted)Read the back-of-board silkscreen; set type correctly
Solid whiteSPI bus disabled in raspi-configsudo raspi-config → Interface Options → SPI → Enable
Solid whiteLoose HAT — header pins not seatedPower down, reseat firmly, watch for bent pins
Half-image / mirroredrotation wrongTry 0, 90, 180, 270 sequentially
Slow refresh / flashingv1 / v2 panel — partial refresh not supportedUpgrade to v3 / v4 panel for partial refresh
Ghosting after weeks of useNormal; the face’s static pixels accumulate residual chargeForce a full-frame redraw periodically (the panel’s built-in “deep clean” cycle; configurable via ui.refresh_interval)
Red text never renderscolor = "black" set but panel is 3-colorSet color = "red"
Display works, Pwnagotchi daemon doesn’t startDriver loads but bettercap is failing — not a display problemjournalctl -u bettercap; this is Vol 5 §6 territory

3.11 Cheatsheet updates from this volume

Items to roll into Vol 12 (laminate-ready cheatsheet):

  • “Waveshare 2.13” v4 = waveshare_4. Check silkscreen ‘Rev 2.X’ for revision.” (§3)
  • “v3 + v4 support partial refresh; v1 + v2 do not.” (§3)
  • “For color, use Fancygotchi + Pimoroni Inky Impression 4”.” (§6, §7)
  • “Don’t use OLED — burn-in.” (§8)
  • “If display is white: check driver match, SPI enabled, HAT seated.” (§11)
