Pwnagotchi plugins are Python files dropped into /usr/local/share/pwnagotchi/default-plugins/ (jayofelony-shipped) or /usr/local/share/pwnagotchi/custom-plugins/ (yours). Each plugin subclasses pwnagotchi.plugins.Plugin and implements lifecycle hooks the daemon calls at specific events:

Hook	When fired
on_loaded()	At daemon start, after the plugin is imported
on_ready(agent)	Once bettercap + UI are initialized and ready
on_internet_available(agent)	When the Pi has internet access (e.g., joined a control network)
on_handshake(agent, filename, ap, client)	When bettercap captures a handshake
on_ui_setup(ui)	When the UI is being built — add custom UI elements here
on_ui_update(ui)	Every UI refresh tick — update plugin-owned UI elements
on_epoch(agent, epoch, epoch_data)	When the AI agent completes a training epoch
on_unload(ui)	When the plugin is being unloaded (clean shutdown)
Plus ~15 more (on_wait, on_sleep, on_bored, etc.)	Various daemon-state transitions

A plugin is enabled by adding a [main.plugins.<plugin_name>] block to config.toml with enabled = true and any plugin-specific config. The plugin file’s filename must match the block name (pisugar.py ↔ [main.plugins.pisugar]).

2. The canonical plugin set (jayofelony bundle)

jayofelony’s image ships with ~30-40 plugins out of the box. The ones that matter:

Plugin	What it does	Recommended?
grid	The pwngrid peer-to-peer protocol integration	On (default)
auto-update	Periodic OTA upgrade of pwnagotchi + bettercap	Off in production
pisugar	PiSugar 2/3 battery management	On if you have one
gps	UART GPS module integration	On if you have one
bt-tether	Bluetooth tether to phone for off-device web UI	Off unless you’ve set it up
webcfg	Web-UI-driven plugin config (no SSH needed)	On
webgpsmap	A map view of captures in the web UI (needs gps)	On if GPS enabled
wpa-sec	Auto-upload captures to wpa-sec.stanev.org for crowdsourced cracking	Off — see §10 legal
aircrackonly	Filter handshakes to only save aircrack-verifiable ones	Optional
fix_brcmf	Re-apply the patched brcmfmac firmware on every boot	On — see §5
gps-listener	Listen for GPS NMEA over TCP from a phone	Optional
ohcapi	Auto-upload to onlinehashcrack.com	Off — see §10
quickdic	Try a small dictionary against captures on-device	Optional
memtemp	Show CPU temp + RAM on the e-ink face	Optional
screen_refresh	Force periodic full-frame refresh to clear ghosting	On for older Waveshare panels
paw-gps	A PAW-GPS android phone integration	Optional
led	Drive the Pi’s ACT LED for status signaling	Optional
session-stats	Per-session capture statistics on the web UI	On
wigle	Upload wardriving traces to wigle.net	Off — see §10

Roughly: turn on grid / webcfg / fix_brcmf (always). Add pisugar and gps if you have the hardware. Skip the upload-to-the-internet plugins by default — they leak metadata about what you’re capturing.

3. PiSugar plugin — battery management

The PiSugar 3 (Vol 2 §6.2) talks to the Pi over I²C. The pisugar plugin:

• Reads battery voltage + percentage
• Reads charge state (charging / discharging / full)
• Shows battery percentage on the e-ink face status row
• Triggers sudo systemctl poweroff at a configured low-battery threshold (default 10%) — orderly shutdown protects the SD card

Config:

[main.plugins.pisugar]
enabled = true
default_display = "voltage"            # "voltage" / "percentage" / "auto"
shutdown_pct = 10                       # auto-shutdown threshold

The PiSugar 3 also has a hardware RTC the plugin syncs with on boot, fixing the Pi Zero’s lack of built-in RTC. Set pisugar.rtc_sync = true to enable.

Plug-and-play with the PiSugar 2 (older hat) too — same plugin, slightly different I²C addresses, auto-detected.

4. GPS plugin — location logging

For wardriving — annotating captures with where they happened.

Hardware: a UART GPS module connected to the Pi’s UART pins (GPIO 14/15) or a USB GPS dongle (typically a u-blox UBX-class chip). Cheap options: Adafruit Ultimate GPS Breakout ($30), GlobalTop Gms-g6 ($20), Beitian BN-880 USB (~$25).

[main.plugins.gps]
enabled = true
speed = 19200                            # baud rate; check your module datasheet
device = "/dev/ttyS0"                    # UART; "/dev/ttyACM0" for USB

When enabled, every captured handshake gets a sidecar .gps.json file:

{
  "Latitude": 40.7128,
  "Longitude": -74.0060,
  "Altitude": 12.5,
  "Date": "2026-05-15T22:30:15Z"
}

The webgpsmap plugin uses these to render a Leaflet map in the web UI showing every capture’s location. Cute, useful for understanding your route’s coverage.

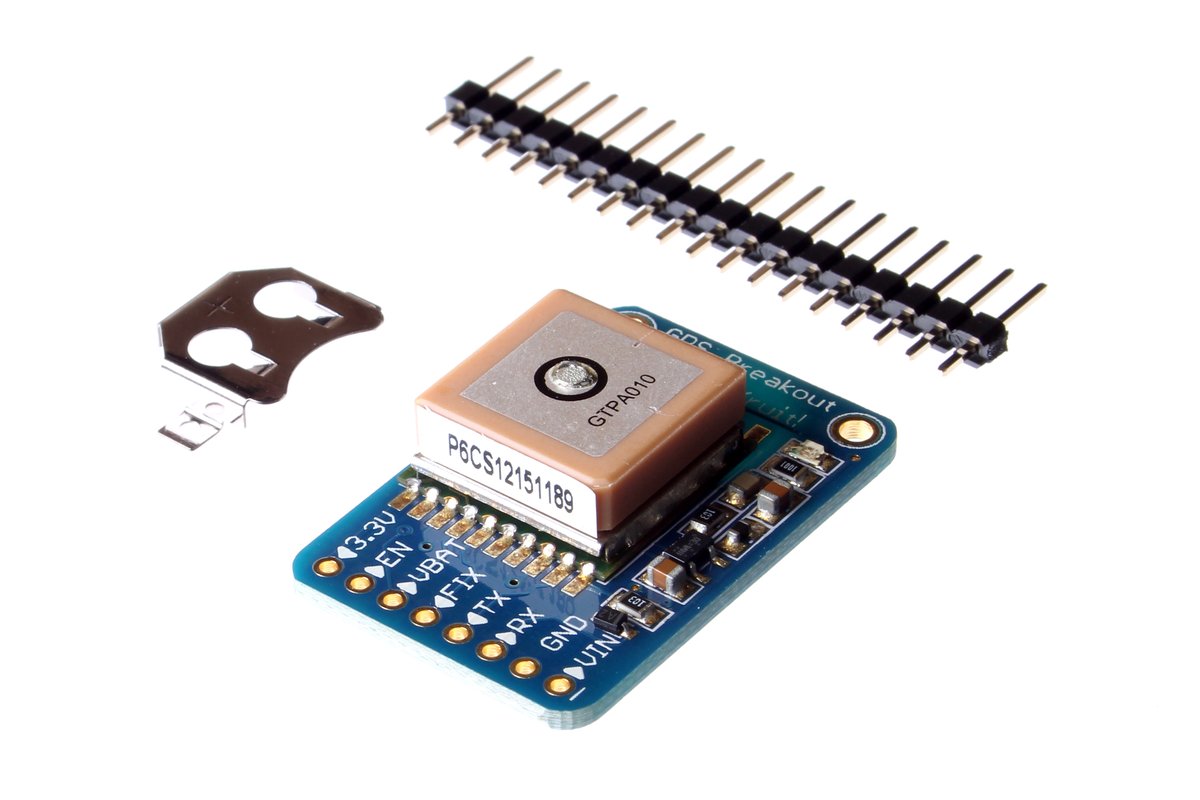

Figure 4.1 — File:Adafruit GPS Module Breakout 2.jpg. CC BY-SA 2.0. Via Wikimedia Commons.

5. fix_brcmf — keep monitor mode working

The single most-needed jayofelony plugin. The Broadcom brcmfmac firmware on Raspberry Pi OS needs a patch to expose monitor mode (Vol 2 §2). Any apt upgrade that updates the linux-firmware or brcmfmac-firmware package can silently overwrite the patched firmware with the upstream-stock version, killing monitor mode without obvious warning.

fix_brcmf checks the firmware hash on every boot and re-applies the patched build if upstream has clobbered it.

[main.plugins.fix_brcmf]
enabled = true

Strongly recommend leaving this on. It’s invisible when nothing’s wrong; it saves your install when something is.

6. The web UI plugins — webcfg, session-stats, webgpsmap

These build on the base web UI (Vol 5 §8). Each adds a tab or panel:

• webcfg — exposes every [main.plugins.*] block in config.toml as a web form. Toggle plugins, edit per-plugin config, restart the daemon — all from the browser. Eliminates the most-common SSH-required workflow.
• session-stats — a “since boot” page showing capture rate, unique BSSIDs seen, unique clients seen, peers seen, agent loss curve.
• webgpsmap — a Leaflet map showing each captured handshake at its GPS location, color-coded by signal strength.

[main.plugins.webcfg]
enabled = true

[main.plugins.session-stats]
enabled = true

[main.plugins.webgpsmap]
enabled = true                          # requires `gps` plugin also enabled

7. The cloud-upload plugins — wigle, wpa-sec, ohcapi

These three plugins push your captured data to third-party services. Each is a defensible design choice for some users and a trap for most:

Plugin	Service	What’s uploaded	Concerns
wigle	wigle.net	BSSID + SSID + GPS + timestamp	Wigle is a public DB; your wardriving trace becomes searchable by anyone, attributed to your account
wpa-sec	wpa-sec.stanev.org	Full .22000 hashes	Wpa-sec runs crowdsourced cracking; if a password cracks it goes in their public DB
ohcapi	onlinehashcrack.com	Full .pcap hashes	Similar — third-party cracking, results may be published

The arguments for: distributed cracking is fast, and Wigle’s coverage is a public good for Wi-Fi geo-lookup.

The arguments against: you’re uploading attack material with timestamps and locations to third parties. If you’ve targeted (even inadvertently) a network you don’t own, you’re handing evidence of that targeting to someone outside your control. Disabled by default in jayofelony for good reason. Enable only with full understanding.

8. aircrackonly — handshake quality filter

The aircrackonly plugin runs every captured .pcap through a quick aircrack-ng -e check; if the handshake isn’t aircrack-verifiable (incomplete, missing nonce, etc.), the .pcap is renamed .pcap.invalid (or deleted, depending on config). Keeps the loot drawer clean.

[main.plugins.aircrackonly]
enabled = true
mode = "rename"                         # "rename" or "delete"

Useful if you find yourself accumulating dozens of half-handshake pcaps from a busy environment. Skippable if you’d rather hand-filter.

9. memtemp — system diagnostics on the face

Adds a small overlay to the e-ink face showing:

• CPU temperature
• RAM used / free
• Disk used / free

[main.plugins.memtemp]
enabled = true
fields = "mem,temp,cpu"

Useful when you suspect heat throttling or running out of disk. The Pi Zero 2 W will throttle at ~80°C in a sealed case under sustained load (deauth bursts are hot); this surfaces the warning.

10. Per-plugin legal envelope

Restating from Vol 1 + Vol 10: every Pwnagotchi plugin operates within the same legal envelope. Capturing handshakes from third-party networks is illegal in most jurisdictions. Uploading captured material to a third-party crowdsourced cracking service makes you the operator who handed off attack material to an external party. Disable wpa-sec, wigle, ohcapi unless your use case explicitly fits — own-network testing, written-authorization penetration test, etc.

The plugin defaults are wisely conservative. Don’t fight the defaults without thinking.

11. Writing your own plugin (preview of Vol 11)

A minimal plugin:

# /usr/local/share/pwnagotchi/custom-plugins/hello.py
import logging

import pwnagotchi
import pwnagotchi.plugins as plugins


class Hello(plugins.Plugin):
    __author__ = 'tjscientist'
    __version__ = '1.0.0'
    __license__ = 'GPL3'
    __description__ = 'A minimal hello-world plugin'

    def on_loaded(self):
        logging.info("[hello] plugin loaded — hi there.")

    def on_handshake(self, agent, filename, ap, client_station):
        logging.info(f"[hello] captured handshake! file={filename}, ap={ap['hostname']}, "
                     f"sta={client_station['mac']}")

Config:

[main.plugins.hello]
enabled = true

Drop the file, edit config.toml, systemctl restart pwnagotchi, watch the journal for [hello] plugin loaded — hi there. Vol 11 goes deeper into the lifecycle hooks and UI integration.

12. Plugin troubleshooting

Symptom	Cause	Fix
Plugin enabled in config but never loads	Filename doesn’t match plugin name; or syntax error in plugin Python	Check journalctl -u pwnagotchi -n 200; look for traceback at load time
Plugin loads but does nothing	The expected hook isn’t being called — your plugin overrides a hook the daemon never fires	Check hook signature matches; the daemon won’t call hooks that don’t exist on Plugin base class
Plugin crashes the daemon	Unhandled exception in a hook propagates up	Wrap hook bodies in try / except; log the traceback
Multiple plugins fight for the same UI region	They both call ui.add_element(...) at the same position	Use position = (x, y) config in your plugin’s config block; coordinate with other plugins

13. The plugin-update cadence

jayofelony bundles plugins; community-contributed plugins land via PRs to his fork. Update path:

sudo pwnagotchi update                  # if auto-update is disabled but you want to pull latest

Or just re-flash the latest jayofelony image periodically (every ~6 months) — gives you the latest plugin set + brcmfmac firmware + base OS in one step. Save /etc/pwnagotchi/config.toml and /root/handshakes/ first.

For Fancygotchi (Vol 7): update separately via git pull in /usr/local/share/fancygotchi/.

14. Cheatsheet updates from this volume

Items to roll into Vol 12 (laminate-ready cheatsheet):

• “Always enable: grid, webcfg, fix_brcmf.” (§2, §5)
• “Disable by default: wigle, wpa-sec, ohcapi — they leak metadata.” (§7, §10)
• “Plugin file’s filename must match [main.plugins.<name>] block name.” (§1)
• “Plugin enabled but not loading? journalctl -u pwnagotchi shows the import traceback.” (§12)
• “Update plugins by re-flashing jayofelony every ~6 months, OR sudo pwnagotchi update.” (§13)
